Arrowmatics Magnetic Filter Bar provides a solution for removing ferrous chips, fines, nuts, bolts, parts, damaging tramp iron. High effective permanent magnetic filter bar can be installed at any point in solid, powder or liquid material flows to catch and separate very fine ferrous particles. It was used for purity from free flowing materials such as carbon black, drugs and chemicals, cosmetics, plastics, grains, spices, sugar, honey, salt ...


Round Version

Part No.

Diameter
(mm)

Length
(mm)

Part No.

Diameter
(mm)

Length
(mm)

CMbar-R-100

25

100

CMbar-R-600

25

600

CMbar-R-150

25

150

CMbar-R-650

25

650

CMbar-R-200

25

200

CMbar-R-700

25

700

CMbar-R-250

25

250

CMbar-R-750

25

750

CMbar-R-300

25

300

CMbar-R-800

25

800

CMbar-R-350

25

350

CMbar-R-850

25

850

CMbar-R-400

25

400

CMbar-R-900

25

900

CMbar-R-450

25

450

CMbar-R-950

25

950

CMbar-R-500

25

500

CMbar-R-1000

25

1000

CMbar-R-550

25

550

CMbar-R-1500

25

1500

Other length can be supplied on request.

Square Version

Part No.

Square
(mm)

Length
(mm)

Part No.

Diameter
(mm)

Length
(mm)

CMbar-S-100-01

25x25

100

CMbar-S-100-02

50x50

100

CMbar-S-200-01

25x25

200

CMbar-S-200-02

50x50

200

CMbar-S-300-01

25x25

300

CMbar-S-300-02

50x50

300

CMbar-S-400-01

25x25

400

CMbar-S-400-02

50x50

400

CMbar-S-500-01

25x25

500

CMbar-S-500-02

50x50

500

CMbar-S-600-01

25x25

600

CMbar-S-600-02

50x50

600

CMbar-S-700-01

25x25

700

CMbar-S-700-02

50x50

700

CMbar-S-800-01

25x25

800

CMbar-S-800-02

50x50

800

CMbar-S-900-01

25x25

900

CMbar-S-900-02

50x50

900

CMbar-S-1000-01

25x25

1000

CMbar-S-1000-02

50x50

1000

CMbar-S-1500-01

25x25

1500

CMbar-S-1500-02

50x50

1500

Other length can be supplied on request.

Dimension, construction and feature,

1. For round magnetic filter bar, we have Diameter 0.5", 0.75", 0.875", 1", 1.25", 1.5", 1.75",
    2", 3", 4" for your choice. But the most common diameter is 1". Standard tube lengths
    range from 3" to 60" long. Square magnetic bars can be provided on request.
2. Constructed of SS304 & SS316 casing tube, it is equipped with high density Ceramic
    8 magnets and high-energy Rare-earth magnets to suit your application. You can
    build or modify your own magnetic separation equipment with individual magnetic
    filter bar.
3. Magnetic strength from 1500-12000gauss can be asked as per your requirements.
    For normal magnetic bar equipped with Ceramic magnets, which could give typical
    peak value of more than 3,000 Gauss on the surfaces, and could be used up to
    temperatures of 150 For normal magnetic bar equipped with Rare-earth magnets,
    which could give typical peak value of more     than 12,000 Gauss on the surfaces.

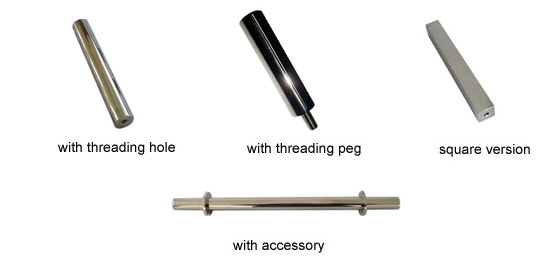

4. Fully seal welded with either plain ends or tapped ends to suit your application.
5. All of magnetic bars are waterproof.
6. Condition: Well polished.

Most standard sizes can be delivered in 1-2 working days to suit your urgent needs.
