Home > Products > Holding Assemblies > Ceramic Magnetic Rails & Toolbar

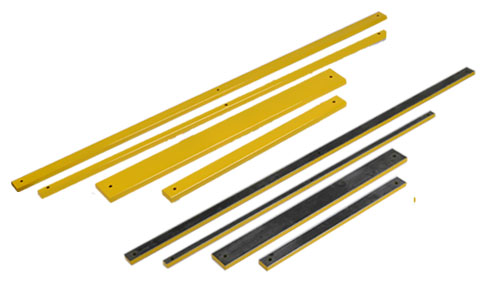

Magnetic Rails, Magnetic Tool Holders, Magnetic Attraction Bar

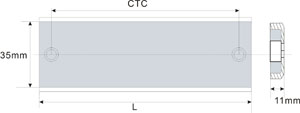

Part No.

Length

CTC

Pull force (N)

CMrail-01

100

82

152

CMrail-02

150

133

227

CMrail-03

200

184

302

CMrail-04

300

286

345

CMrail-05

450

438

520

All dimension in mm. Other length can be provided on request.

Part No.

Length

CTC

Pull force (N)

CMrail-06

100

82

200

CMrail-07

150

133

276

CMrail-08

200

184

405

CMrail-19

300

286

716

CMrail-10

450

438

1200

All dimension in mm. Other length can be provided on request.

Part No.

Length

CTC

Pull force (N)

CMrail-11

100

82

500

CMrail-12

150

133

750

CMrail-13

200

184

1000

CMrail-14

300

286

1490

CMrail-15

450

438

2240

All dimension in mm. Other length can be provided on request.

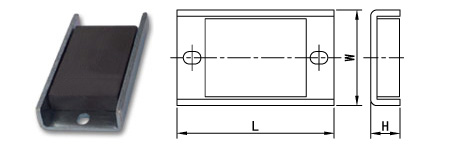

Ceramic Channel Magnets


Part No.

Dimension (mm)

Pull force (N)

Length

Width

Thickness

CMchannel-01

80

38.1

11

230

CMchannel-02

100

38.1

11

250

All dimension in mm. Other length can be provided on request.
