Magnetic Welding Fixtures/Welding Magnets

1. Multi-angle permanent magnetic welding fixtures are designed for fast and
accurate holding of flat and round ferrous metal for welding and assembly jobs.
Various angles available from 30, 45, 60, 75, 90, to 180 .


Part No.
Dimension(mm)
Weight (Kg)
A
B
C
D
CMWelding-01
129
9
82
-
0.27
CMWelding-02
155
17
103
25
0.58
CMWelding-03
188
25
122
45
1.1

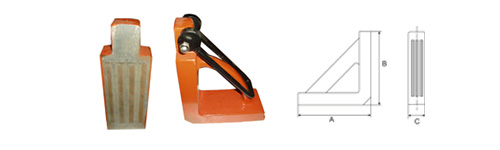

2. Heavy-duty permanent magnetic welding fixtures

These powerful magnetic welding fixtures are equipped with two magnetic systems, and are designed for holding components during welding, fabricating and assembling. Each magnetic system is fixed in a nonmagnetic casing to minimize stray magnetic fields and reduce the possibility of attracting weld spatter. Powerful, permanent magnets are mounted in cast Aluminum housing which is available with fixed 90angle.

Part No.

Dimension(mm)

Weight
(Kg)

A

B

C

CMWelding-04

180

210

55

5.3

CMWelding-05

220

270

90

7.2
