Arrowmatics Liquid Line Magnetic Traps are designed to extract the ferrous materials from the slurry or liquid raw materials in order to purify the material in the production process. Strong magnetic tubes filter the flow and extract the unwanted ferrous metal. The unit is simply connected to the existing pipeline via flanged or threaded ends. Simple and easy access is possible using the quick release lid. Cleaning of the magnets is easily accomplished by removing the cover plate of the housing and sliding out each magnet assembly.

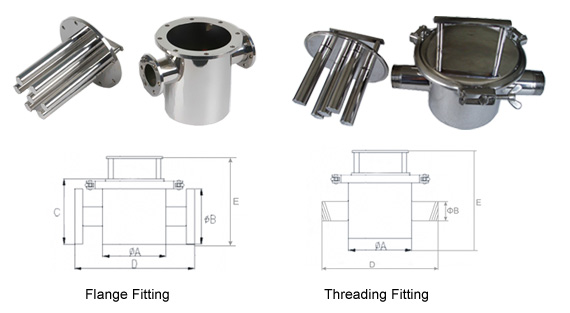

Flange Fitting

Part No.

A

B

C

D=E

Number of bars

CMtrap-F-150

150

50

150

300

5

CMtrap-F-200A

200

50

200

350

7

CMtrap-F-200B

200

75

200

350

7

CMtrap-F-250A

250

50

250

400

9

CMtrap-F-250B

250

75

250

400

9

CMtrap-F-250C

250

100

250

400

9

CMtrap-F-300A

300

50

300

450

9

CMtrap-F-300B

300

75

300

450

9

CMtrap-F-300C

300

100

300

450

9

OEM orders & Customer Designed Applications are also welcomed.

Threading Fitting

Part No.

A

B

D=E

Number of bars

CMtrap-T-150

150

50

300

5

CMtrap-T-200A

200

50

350

7

CMtrap-T-200B

200

75

350

7

CMtrap-T-250A

250

50

400

9

CMtrap-T-250B

250

75

400

9

CMtrap-T-250C

250

100

400

9

CMtrap-T-300A

300

50

450

9

CMtrap-T-300B

300

75

450

9

CMtrap-T-300C

300

100

450

9

OEM orders & Customer Designed Applications are also welcomed.

Construction and feature

  1. It is equipped with high-energy Rare-earth Magnets. Diameter of magnetic bar is 1".
  2. Construction uses Type 304 stainless steel. Type 316 stainless steel available on request.
  3. It can be fastened by screw nuts; it also can be fastened by band clamp
  4. Easy-clean type can be provided on request.
  5. All of magnetic bars are waterproof.
  6. Condition: Well polished
